ORBIT TANDEMS Lightning electric assist Bosch Drop
Pricing
Our Price £6300.00
In stock - Test ride model available
The Lightning Bosch Performance Line CX Smart, is the newest addition to the Orbit electric assist range.Built using a lightweight aluminium frame, the tandem uses the Bosch Perfomance Line CX 250W motor and comes with a 545wh battery. At an extra cost of £450 a powermore battery will be available which gives a further 250wh of range.
Battery weighs 3.5kg, and takes 4 hours for a full charge, however, it is 80% charged after the initial 2 1/2 hours.
Range of course depends upon rider weight, wind, tyre selection & altitude gain, but it can be as much as 70 miles per charge.
The 250W motor is the highest output system that is road legal in the UK, giving up to 85Nm of torque.
This type of electric assist is called a mid-drive system, the engine runs through the gears, and correct use of the gears when climbing make the system really efficient, and allows a light weight motor to be used whilst still giving out a great amount of torque, which is needed for pedalling up the hills.

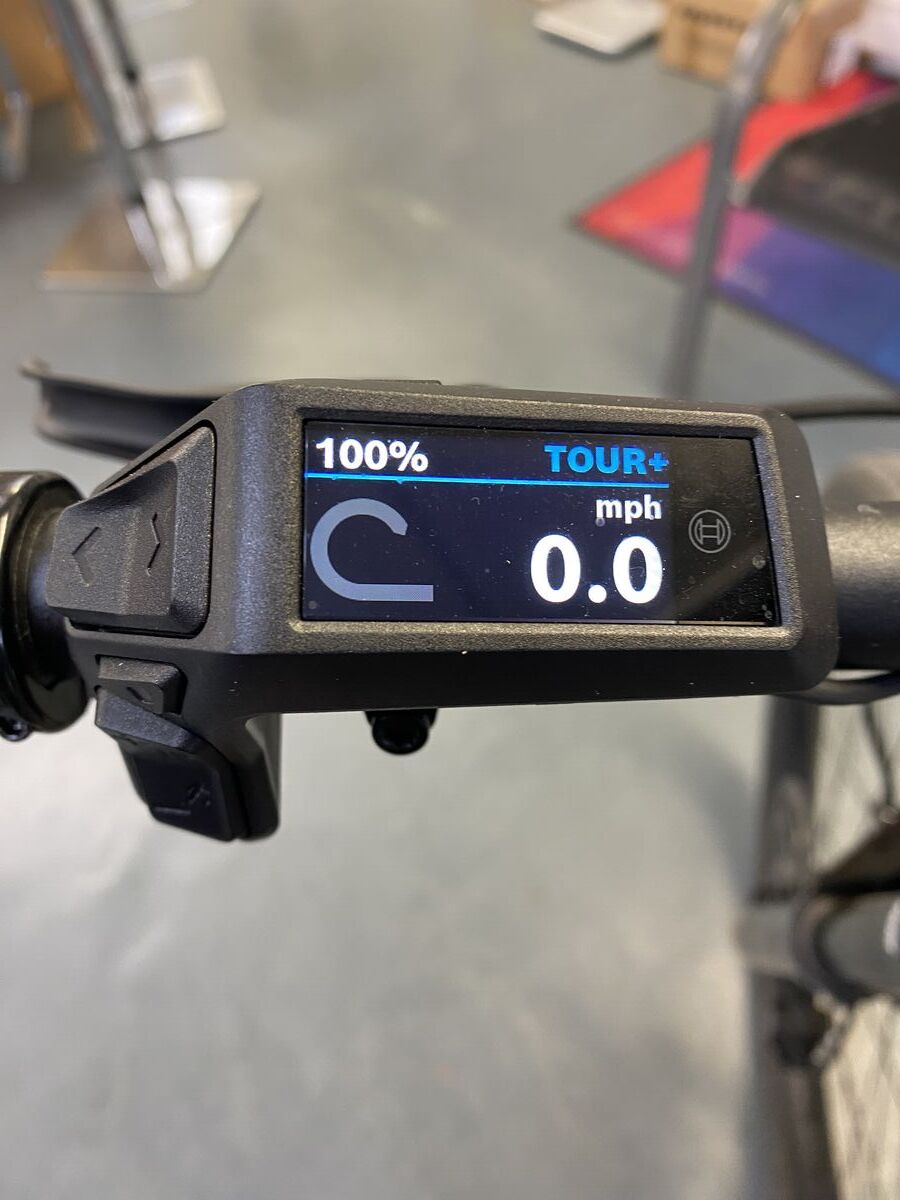

Built in North Yorkshire, and finished with top quality components including the new Bosch Smart system with a Kiox 300 controller.
Wheels size 700c.
Specifications
Ask Us
Reviews
Related
| Options | 19/15" Blue/white 20/16" Blue/white 22/18" Blue/white |
|---|---|
| Description | Comes with 545wh battery |
| Frame | Orbit lightweight aluminium |
| Forks | Orbit full chromoly steel disc |
| Front Derailleur | None |
| Rear Derailleur | Shimano GRX |
| Shifters | Shimano R7000 11 speed STI Accessory bar for controller |
| Chainset | Orbit 170mm crank length with Bosch Performance Line CX motor front Orbit 170mm crank length 42 tooth rear |
| Bottom Bracket | eccentric & square taper |
| Chain | KMC nickel plated 160 link front Shimano 11 speed rear |
| Cassette | Sunrace cassette 11/46 |
| Front Brake | TRP Spyke cable pull disc brake, with 203mm rotor |
| Rear Brake | TRP Spyke cable pull disc brake, with 203mm rotor 3rd brake Shimano V brake, controlled from the front handlebars with Shimano friction lever |
| Brake Levers | Shimano |
| Front Hub | Orbit tandem large flange, cartridge bearing, 6 bolt disc |
| Rear Hub | Orbit tandem large flange, cartridge bearing, 6 bolt disc, 145mm OLD |
| Rims | Alex G6000 deep section aero |
| Spokes | Sapim Strong butted stainless |
| Tyres | Schwalbe Marathon 700 x 35, 38 or 47 e-plus |
| Headset | Tange 1 1/8", reinforced bottom cup with stainless bearings |
| Stem | Satori 31.8mm ahead front, Orbit adjustable, 160mm to 200mm rear |
| Handlebars | Satori Cheetah drop bars 44cm CTC 31.8 clamp size front, Black alloy stoker bars, 25.4 clamp size, 49cm external width 4.5cm stoker riser rear |
| Saddle | Velo Sport front Velo plush comfort touring rear |
| Seatpost | Black alloy, 400mm x 27.2 front, Black Satori Elegance suspension 40mm travel rear |
| Grips | Velo black cork tape front, Velo black cork bar tape rear |
| Included | Pannier rack 3 leg rack 2 X bottle cages Mudgards with stainless fittings |
| Pedals | Alloy touring with strapless toe cups |
| Optional Extras | Prop stand now included |
As with any product, the specification is subject to change without prior notification. You are advised to confirm current specification before buying.
