CAMPMAJO E-Touring Bosch
Pricing
Our Price £10500.00
Test ride model available

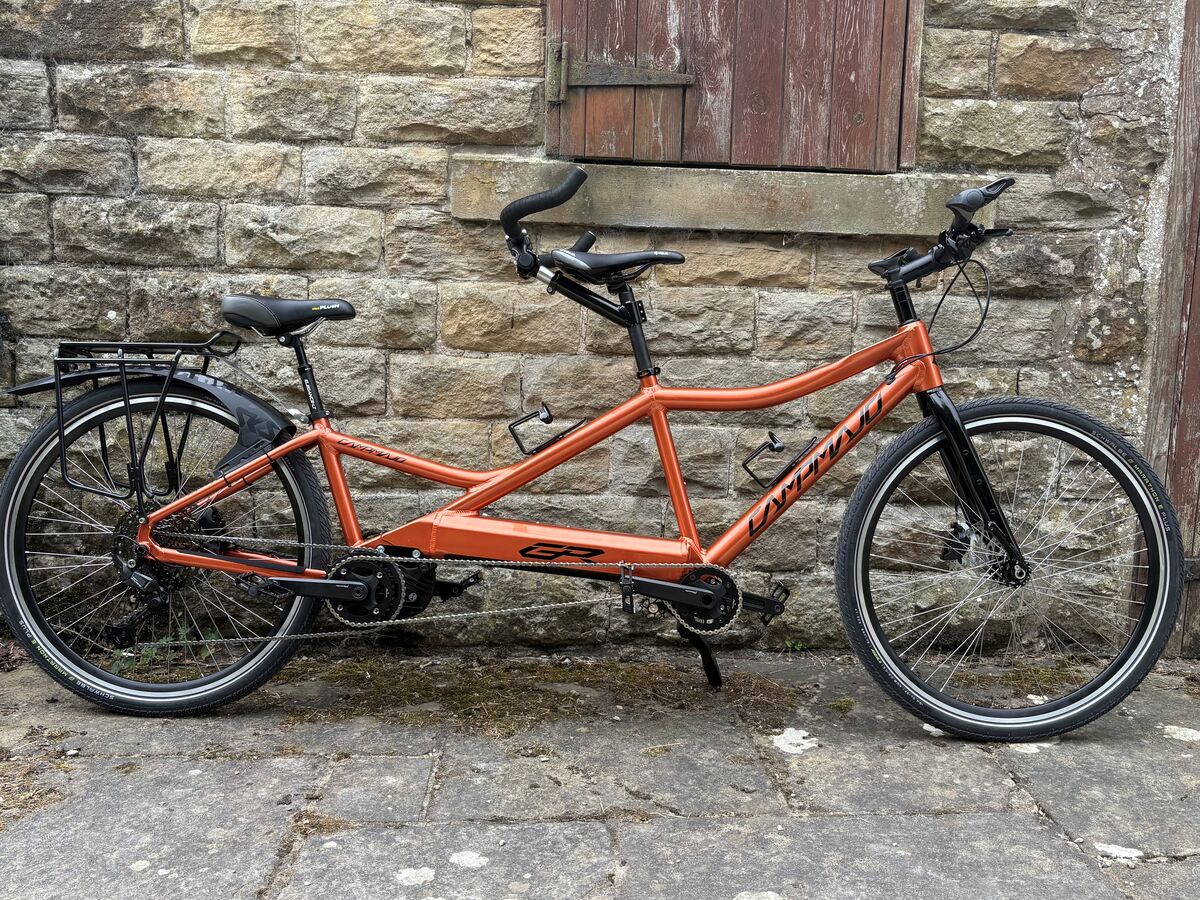

This tandem is a colaboration between us here at JD Tandems, and Campmajo in Spain.Campmajo have built us a stunning e-touring tandem frame, using a lightweight aluminium frame, each frame is a custom build and they offer a large range of tandem frames, including full suspension e-tandems, and also a range of non electric assist tandems.

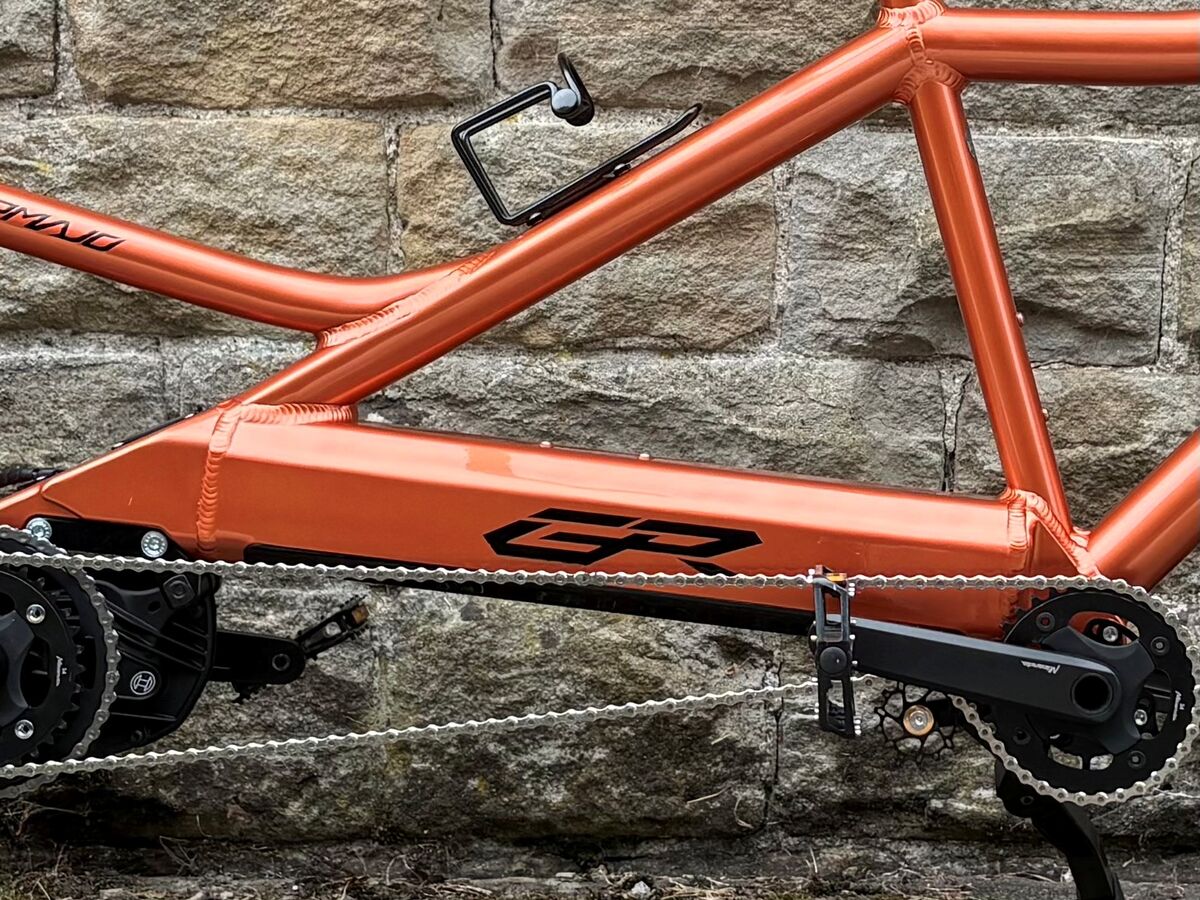

The tandem uses the Bosch Performance Line CX 250W motor 100Nm and comes with a 800wh Powertube battery. Which is internally mounted.
Add a Powermore for £450 to give 1,050wh.
Adding a Powermore turns the single battery system into a twin battery system, there is also an option to have 2 x 800wh internally mounted batteries.
Range of course depends upon rider weight, wind, tyre selection & altitude gain, but it can be as much as 80 miles per charge.
The 250W motor is the highest output system that is road legal in the UK, giving up to 100Nm of torque. This motor can also be programmed upto 120Nm of torque, although in these very high power settings it uses a lot of battery.
This type of electric assist is called a mid-drive system, the engine runs through the gears, and correct use of the gears when climbing make the system really efficient, and allows a light weight motor to be used whilst still giving out a great amount of torque, which is needed for pedalling up the hills.

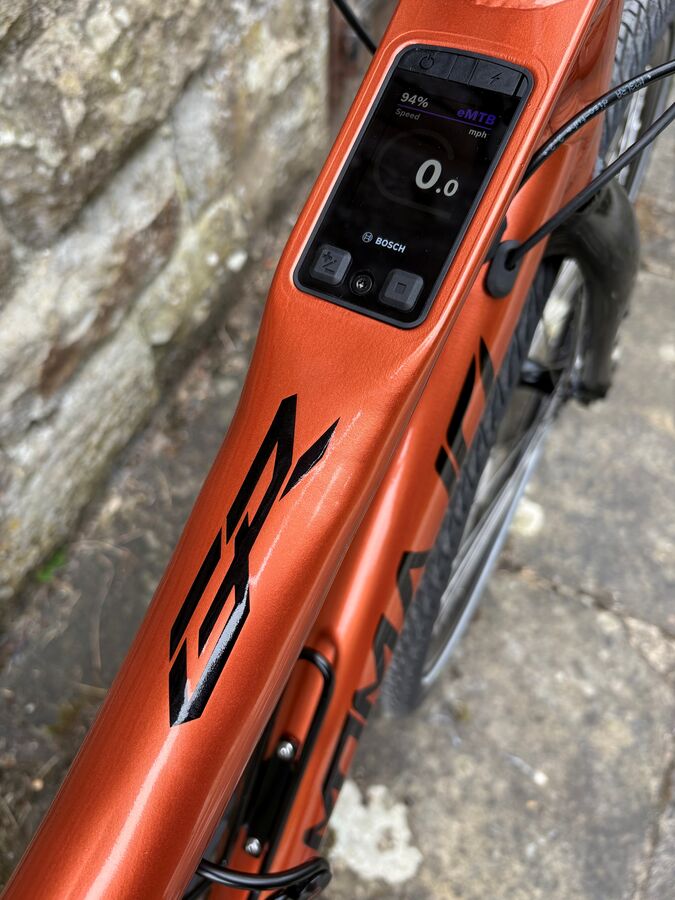

Built in North Yorkshire, and finished with top quality components including the new Bosch Smart system with a Kiox 400C controller mounted into the front top tube.
Wheels size 700c.
Specifications
Ask Us
Reviews
Related
| Options | custom |
|---|---|
| Description | Every Campmajo frame is custom made so they are available to order in different frame styles, for our 1st demonstration model we wanted something with good standover height front and rear. There are lots of colour choices and sizes. |
| Frame | Campmajo lightweight aluminium |
| Forks | Campmajo aluminium thru axle disc |
| Front Derailleur | None |
| Rear Derailleur | Shimano Linkglide 11 speed |
| Shifters | Shimano Linkglide 11 speed right hand shift lever |
| Chainset | Front - Miranda 165mm crank length Rear - Miranda 165mm crank length 42 tooth drive ring and with Bosch Performance Line CX Smart motor 100Nm with Kiox 400C and 800wh battery |
| Bottom Bracket | Miranda ISIS, FSA Bosch Ebike 1 x 11 Spider G4 allo V-shape |
| Chain | KMC nickel plated 160 link front Shimano 11 speed linkglide rear |
| Cassette | Shimano Linkglide 11 speed 11/50 |
| Front Brake | Front - Magura Clara Pro hydraulic with 220mm rotor |
| Rear Brake | Rear - Magura Clara Pro hydraulic with 203mm rotor |
| Brake Levers | Magura |
| Front Hub | Halo tandem large flange, cartridge bearing, 6 bolt disc 48 hole, thru axle |
| Rear Hub | Orbit tandem large flange, cartridge bearing, 6 bolt disc, 142 x 12mm thru axle 48 hole |
| Rims | Deep section aero |
| Spokes | Sapim Strong butted stainless |
| Tyres | Schwalbe Marathon 700 x 35, 38 or 47 e-plus |
| Headset | FSA Orbit |
| Stem | Satori 31.8mm ahead front, Campmajo adjustable rear |
| Handlebars | Satori black riser, 31.8 clamp size front, Black alloy stoker bars, 25.4 clamp size, 49cm external width 4.5cm stoker riser rear |
| Saddle | Front - Velo Sport Rear - Velo plush comfort touring |
| Seatpost | Black alloy, 400mm x 30.9mm front, Black Satori Elegance suspension 40mm travel rear |
| Grips | Wave ergo lock-on with integrated bar ends front, Velo black cork bar tape rear |
| Included | Topeak Super Tourist 2 X bottle cages Mudgards clip on |
| Pedals | Alloy touring with strapless toe cups |
| Optional Extras | Prop stand included |
As with any product, the specification is subject to change without prior notification. You are advised to confirm current specification before buying.
