ORBIT TANDEMS Tandem Tour Rear Hub 6 Bolt 48 hole

Pricing
Our Price £350.00
Super strong heavy duty touring hub.

This hub is available in a variety of hub body and axle combinations. Some of these are at an extra cost, please ask us for further information.

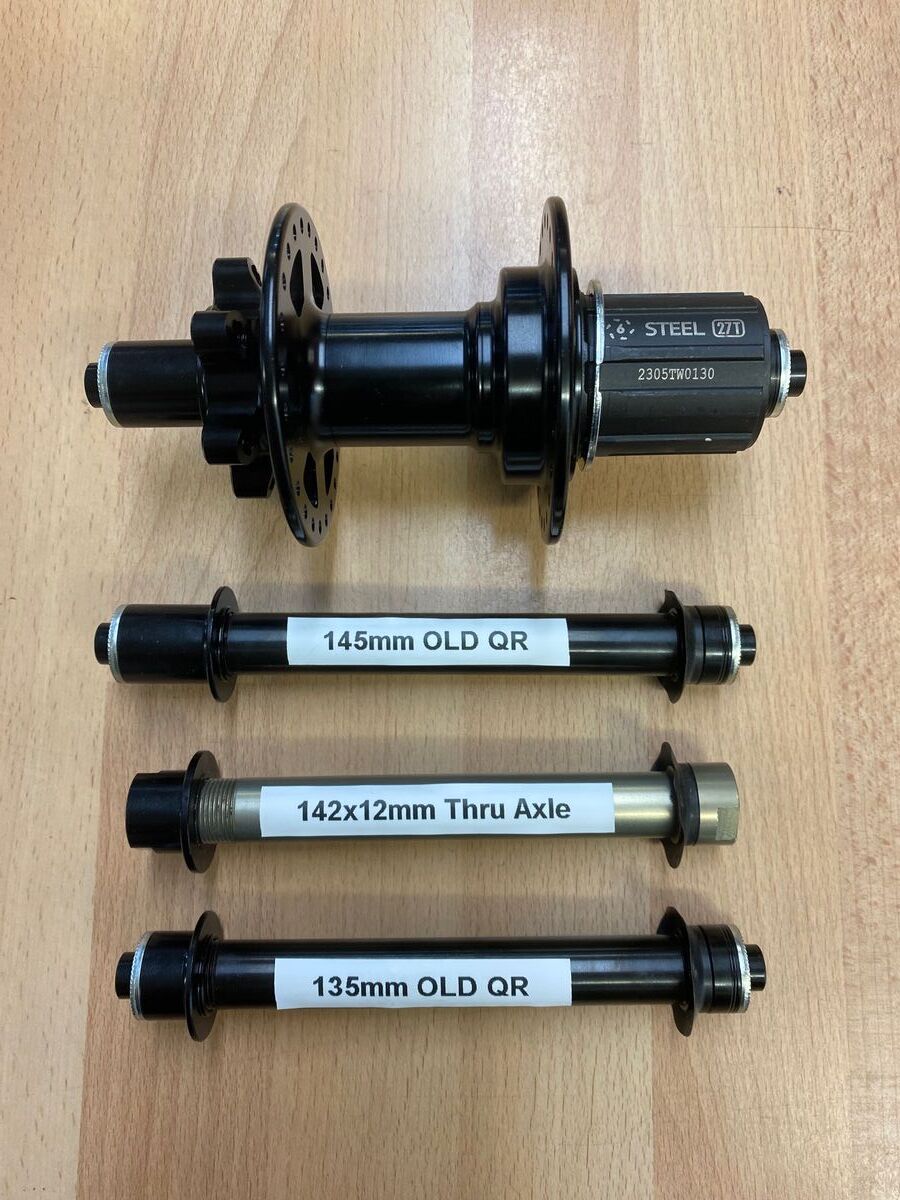

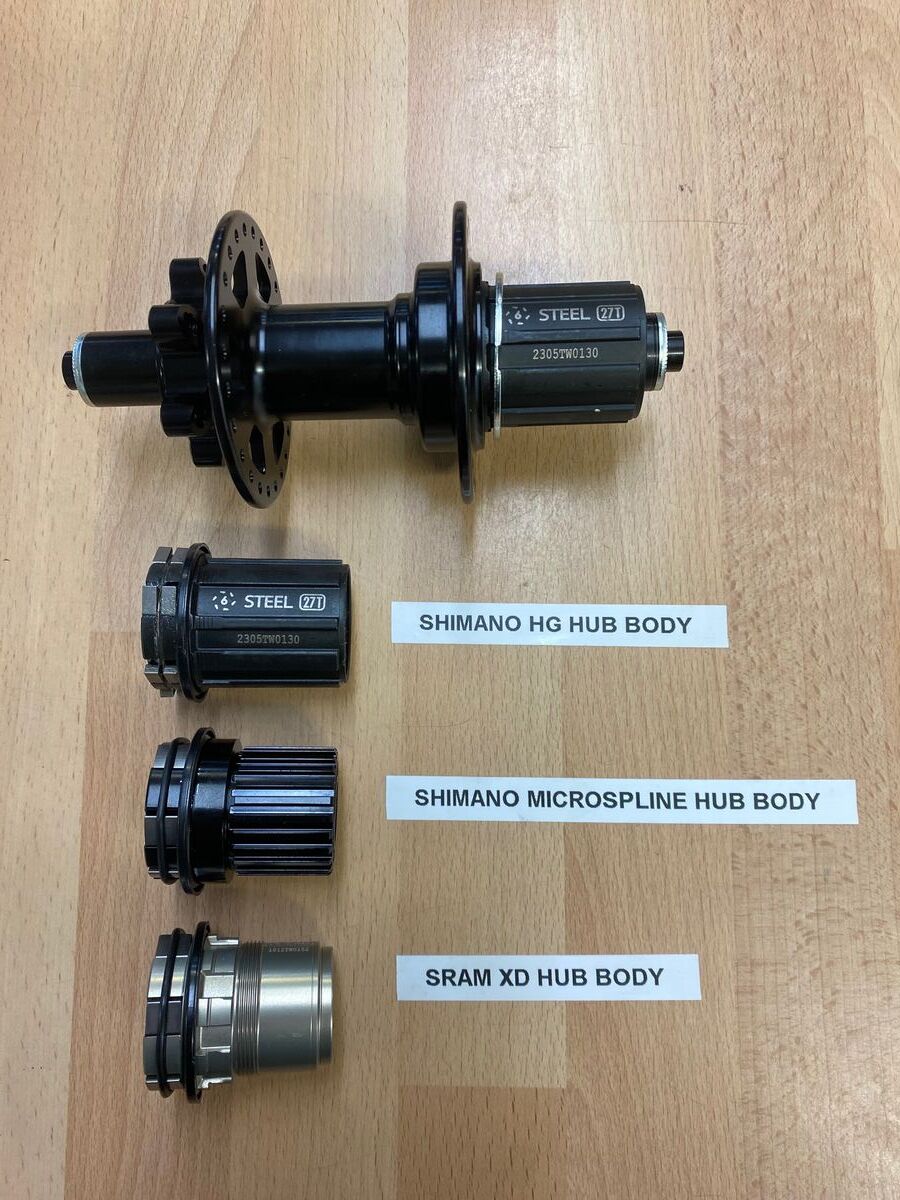

135mm QR Cromo - Shimano HG
145mm QR Cromo - Shimano HG
142mm x 12mm thru Cromo - Shimano HG
135mm QR XD hub body
145mm QR XD hub body
142mm x 12mm thru XD hub body
135mm QR XDR hub body
145mm QR XDR hub body
142mm x 12mm thru XDR hub body
135mm QR Microspline
145mm QR Microspline
142mm x 12mm thru Microspline
Specifications
Ask Us
Reviews
Related
Options 145mm OLD
135mm OLD
Description The Orbit Tour 48 hole tandem hub is 145mm or 135mm OLD

Weighs 439g (without skewer)

6 bolt disc

Larger flange to allow for 48 hole spokes.

Cromo steel axle and cromo steel freehub body

6 Pawls

10,11,12 speed compatible.

5 sealed cartridge bearings
uses 3 - 6902 and 2 - 6802

P.C.D 63

Engagement is 48 per revolution with 7.5 degrees between engagements


As with any product, the specification is subject to change without prior notification. You are advised to confirm current specification before buying.
