Orbit Tandems come in a great range of sizes. Our Routier frames are available in medium & large sizes (see below), Lightnings are also available in medium & large and our steel tandems are available in 7 standard sizes plus custom sizing. Our Velocity frame comes in 4 sizes, the small, medium and large as below and now also a XL, which is a 23/19 with a 61cm front horizontal top tube

If you require any dimensions not shown please contact us for further details.

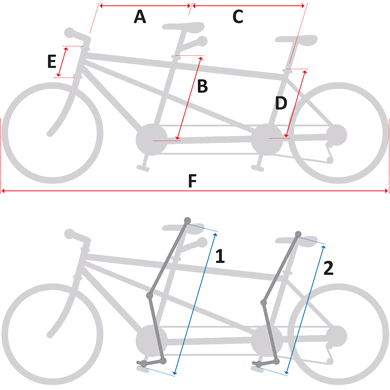

Sizing References

Sizing Chart

Small Medium Large
A 54cm/21" 56cm/23" 58cm/23"
B 46cm/18" 51cm/20" 56cm/22"
C 66cm/26" 71cm/28" 71cm/28"
D 36cm/14" 41cm/16" 46cm/18"
E 12.5cm/5" 12.5cm/5" 16.5cm/6.5"
F 243cm 248cm 250cm
The total length (F) is based upon a 700x32c tyre 26" tandems will be approximately 4cm shorter.

Correct Sizing

To allow us to recommend the most appropriate size of tandem we would like you to measure your solo bikes or tandem and provide your ride heights.

See the image on the left. Please make sure the pedal is set at the furthest point away from the saddle. If you are planning on buying your tandem mail order we also need to know the distance from the nose of your saddle to the centre of the handlebars, and to know if your handlebars are higher, lower or level with your saddles. If you need any help or advice with sizing then please get in touch. If you are planning on test riding then we only need to know how tall you both are.
